motion cycle 900

The motion cycle 900 comes along with various technical improvements. The newly developed fine monitor is combined with constructional changes such as the larger step through, the wider adjustment range on the seat post and an optionally adjustable handle...

« Back to Product Line Data Sheet ⭳ Data Sheet med ⭳
motion cycle 900

The motion cycle 900 has been developed with focus on biomechanical aspects and meets all the requirements for an optimal, individual training position. Parallel to the changes in the monitor, the housing has been made more compact to allow for a wide step-through of approx. 36- 41 cm/14.1-16.1’’ and a deep position of the axle for easier mounting and dismounting . Children can use the motion cycle 900 from a height of approx. 135 cm/53’’. The seat post has a very wide adjustment range, which extends the user group to heights up to 205 cm/80’’. Whether tall or short, athlete or patient, everyone benefits from the Q-factor of no more than 18 cm/7’’ and the horizontal saddle adjustment. If you want to further optimise your training position, we offer the handlebar adjustment as an option. This allows the handlebars to be swivelled horizontally and vertically and thereby allows an upright or triathlon position. The technology used allows wobble-free fixation with little force.

The access is extra wide from bottom to top and ensures getting on and off the machines easily.

motion cycle 900 <p>The access is extra wide from bottom to top and ensures getting on and off the machines easily.&nbsp;</p>

The handle can optionally be adjustable. If chosen, the handle swivels in height and angle at the same time, thus enabling a more upright or triathlon position. The mechanism used is low wearing and can be adjusted with little force.

motion cycle 900 <p>The handle can optionally be adjustable. If chosen, the handle swivels in height and angle at the same time, thus enabling a more upright or triathlon position. The mechanism used is low wearing and can be adjusted with little force.</p>

A wide adjustment range of the seatpost allows trainees between 1,25 m and 2 m height a suitable and comfortable training position.

motion cycle 900 <p>A wide adjustment range of the seatpost allows trainees between 1,25 m and 2 m height a suitable and comfortable training position.</p>

8-year old kid at around 1,25 cm.

motion cycle 900 <p>8-year old kid at around 1,25 cm.</p>

The optional length-adjustable crank arm is made from stainless steel and adjustable without the need of any tooling. The scale with increments of just 1 cm allows correct and repeated positioning within the range of a 55-175 mm radius.

motion cycle 900 <p>The optional length-adjustable crank arm is made from stainless steel and adjustable without the need of any tooling. The scale with increments of just 1 cm allows correct and repeated positioning within the range of a 55-175 mm radius.</p>

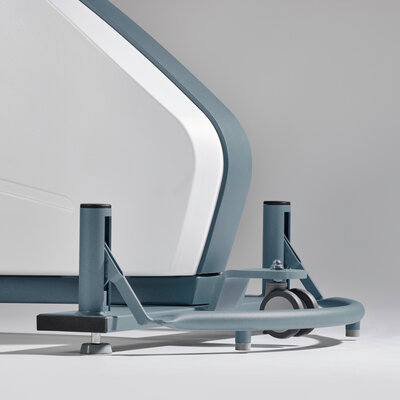

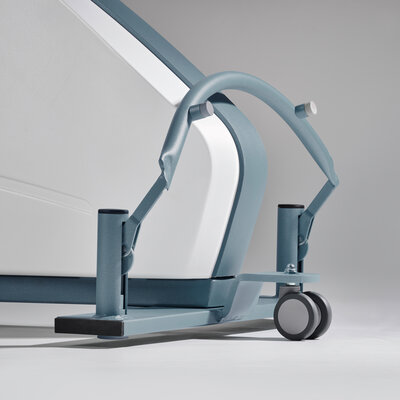

The motion easy move system is used for an effortless moving and locking of the machine...

motion cycle 900 <p>The&nbsp;motion easy move system is used for an effortless moving and locking of the machine...</p>

... and is being used in limited spaces as well as in situations, where the machine needs to be taken to the patient and not vice versa.

motion cycle 900 <p>... and is being used in limited spaces as well as in situations, where the machine needs to be taken to the patient and not vice versa.</p>

FUNCTIONS

  • attractive, full-colour display
  • durable, clean touch display
  • quick start, time training, pulse training
  • interference-free Polar® heart rate indication with automatic device connection
  • low and wide step through
  • vertically and horizontally adjustable saddle

OPTIONS

  • performance package (Qi charging, max. 950 watts, with optional power supply min. 7 watts)
  • connect package for system integration (RFID, NFC, Bluetooth® Low Energy, Barcodes)
  • programme package (10 training programmes, test profiles, motion balance system, serious games, program memory)
  • „all-in-package“: performance + connect + programme package
  • boosted cycle - user weight increase to max. 200 kg/440 lbs
  • length-adjustable cranks, adjustable without tools
  • motion easy move - roller lift system
  • adjustable handlebars
  • housing in anthracite colour
  • certification according to (EU) 2017/745, class IIa

TECHNICAL DATA

  • 7-inch capacitive touch display
  • Polar® auto connection (5kHz & Bluetooth®), downward compatible, optional: Ant+
  • mono-belt drive, self-adjusting
  • calibrated and re-calibratable, quiet HBS brake
  • side-dependent power display
  • mains-independent operation
  • manufactured according to DIN EN ISO 20957-1 S-A-I,
  • DIN EN ISO 20957-5 S-A-I, DIN EN 60601-1-2
  • medical devices certified according to (EU) 2017/745, class IIa
  • medical power range: 15 - 500 watts rpm-independent
  • fitness power range: 25 - 500 watts rpm-independent
  • rpm range: 15 - 140 rpm
  • max. user weight: 150 kg/330 lbs
  • dimensions: approx. 119 x 65 x 145 cm/ 46.9 x ,25.6 x 57.1’’, approx. 58 kg/128 lbs
This icon marks features especially valuable for medical applications
